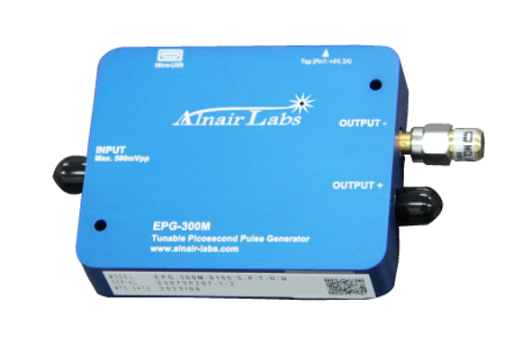

Programmable Electrical Pulse Generator (EPG-300)

  • Tunable Pulsewidth Generator

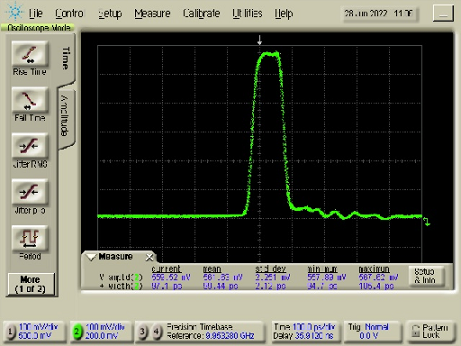

  • 100ps pulse waveform

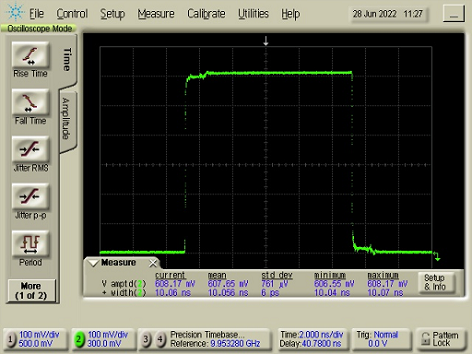

  • 10ns pulse waveform

    The EPG-300 is pulsewidth programmable picosecond to nanasecond electrical pulse generator. The output pulse can be as short as 100ps, with 50ps and high-voltage option available. It can drive most off-the-shelf laser diodes of LN modulators to generate short optical pulses. The tunability of the pulse-width and frequency repetition rate offers flexibility in laser machining application, where control of laser pulse energy is required.

    • Short electrical pulse down to 50ps (Option)
    • Sharp rise/fall time of 20ps typ.
    • Adjustable pulsewidth and frequency repetition rate
    • Triggerable from external clock or built-in clock option
    • Single ended or differential output available
    • Optical pulse generation
    • Laser diode gain-switching
    • Laser machining
    • LIDAR
