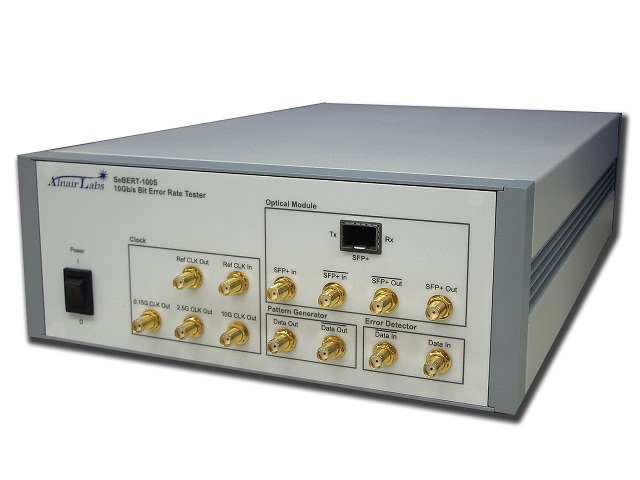

10 Gb/s BERT with optional SFP+/XFP Module Slot(SeBERT-100)

  • SeBERT-100

    SeBERT-100 comprises of a pattern generator, an error detector with internal clock data recovery. Optional module slot for SFP+ or XFP transceivers are available. The unit supports data rates of 9.95-11.32 Gb/s, with settable data pattern of 27 - 1, 231 - 1, 231 - 1 and a fixed 64-bit user-defined pattern. The instrument can be operated remotely via USB port, with full software support, drivers and programming guide for automation.

    • Bit rates from 9.95 Gb/s - 11.32 Gb/s
    • PRBS 27 - 1, 231 - 1, and 64bit definable
    • Pre-emphasis, cross-point and EAM drive options
    • Single-channel or multi-channel BERT (10ch)
    • SFP+/XFP module slot models
    • Component and fiber link testing for 10Gbps, 4x10Gbps and 10x10Gbps
    • Low cost TX/RX device inspection line
    • Data transmission experiments
