Alnair Labs

Multi-channel Narrow Linewidth Tunable Laser (TLG-310)

  • TLG-300
  • TLG-300

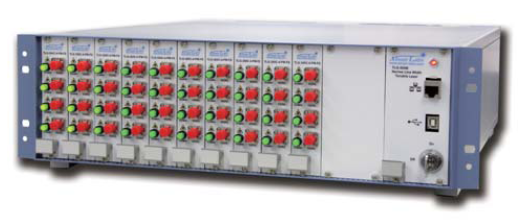

    TLG-310 features <100kHz narrow linewidth with wavelength tunability that is locked at ITU grid. It is available in main frame form, with configurations of 1 to 12 slots. The mainframe comes with an interface of USB/Ethernet. Each slot can be chosen to have 1 to 4 of laser units. Therefore, a maximum of 48 laser units can be accommodated into a main frame with 12 slots configuration. Due to its narrow linewidth, TLG-310 is ideal narrow-linewidth wavelength tunable laser source for applications such as coherent communication and long-range optical sensing.



    • Narrow laser linewidth <100kHz
    • C-band or L-band coverage
    • Wavelength tunable on 25GHz ITU grid
    • Wavelength fine-tuning resolution 1MHz
    • Maximum of up to 48 channels slots available
    • Optical local oscillator
    • Coherent communication
    • Optical sensing
